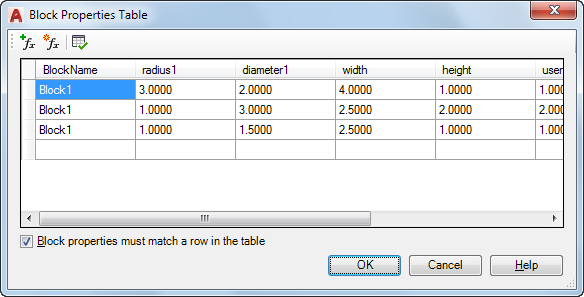

Defines the variations for a set of user-defined properties in the block definition through a grid control.
You can press Shift+Enter to add a new line for a multiline attribute value in the grid in the Block Properties Table dialog box.
List of Options
The following options are displayed.
- Add Properties button
Displays the Add Parameter Properties dialog box where you can add parameters already defined in the Block Properties Table.
- New Properties button
Displays the New Parameter dialog box where you can create and add new user parameters to the Block Properties Table. (Not available in AutoCAD LT.)
- Audit button
Checks the Block Properties Table for errors.
- Grid Control
Displays the name of parameters added to the table. You can also modify the properties of the table.
- Block Properties Must Match A Row In The Table
Specifies whether the properties added to the grid control can be modified individually for a block reference.
- Default Value When Properties Do Not Match Table
Displays the default values when other properties are changed without matching a row.
