Adds leader lines to, or removes leader lines from, a multileader object.
The following prompts are displayed.
- Select a multileader
Select a multileader to change.
- Leader arrowhead location
Specify where the arrowhead for the new leader should be located.
- Add leader
Adds a leader line to a selected multileader object. The new leader line is added to the left or right of the selected multileader, depending on the location of the cursor.
- Remove leader
Removes a leader line from a selected multileader object.

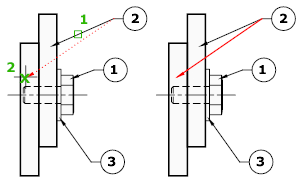

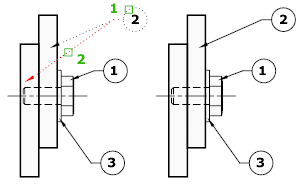

For example:
