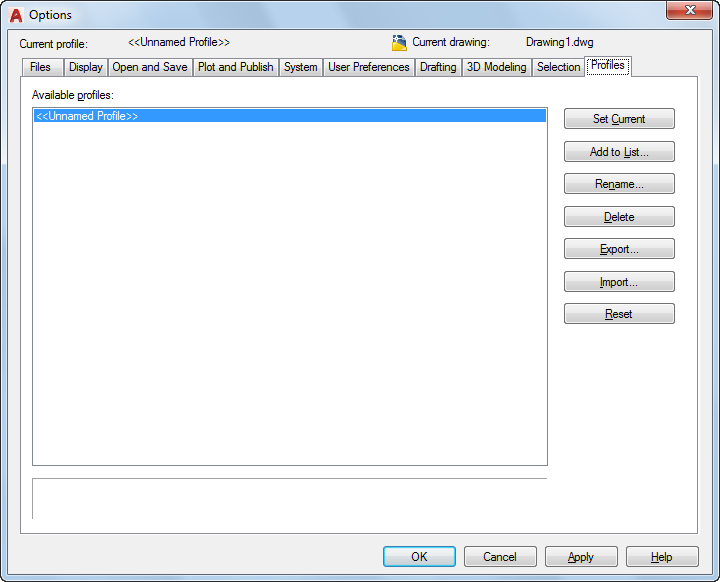

List of Options
The following options are displayed.
- Available Profiles
Displays a list of the available profiles.
- Set Current
Makes the selected profile the current profile.
- Add to List
Displays the Add Profile dialog box to save the selected profile under a different name.
- Rename
Displays the Change Profile dialog box for changing the name and description of the selected profile. Use Rename when you want to rename a profile but keep its current settings.
- Delete
Deletes the selected profile (unless it is the current profile).
- Export
Exports a profile as a file with an .arg extension so the file can be shared with other users.
- Import
Imports a profile (a file with an .arg extension) created by using the Export option.
IMPORTANT:It is not recommended to import a profile that was exported from a different version of the product. For example, do not export a profile from AutoCAD Electrical and import it into the current AutoCAD release.
- Reset
Resets the values in the selected profile to the system default settings.
