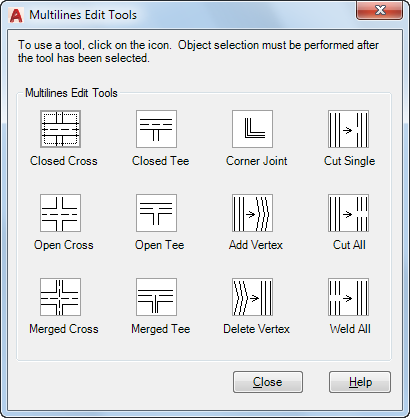

Multilines Edit Tools Dialog Box

The dialog box displays tools with sample images in four columns. The first column controls multilines that cross, the second controls multilines that form a tee, the third controls corner joints and vertices, and the fourth controls breaks in multilines.

List of Options

The following options are displayed.

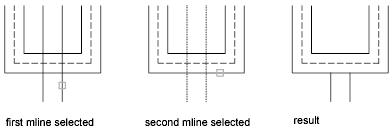

Closed Cross

Creates a closed-cross intersection between two multilines.

Select First Mline. Select the foreground multiline
Select Second Mline. Select the intersecting multiline.

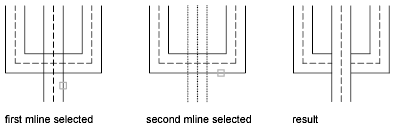

Open Cross

Creates an open-cross intersection between two multilines. Breaks are inserted in all elements of the first multiline and only the outside elements of the second multiline.

Select First Mline. Select a multiline
Select Second Mline. Select the intersecting multiline.

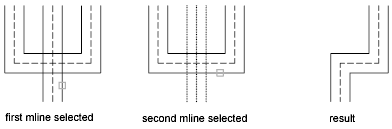

Merged Cross

Creates a merged-cross intersection between two multilines. The order in which you select the multilines is not important.

Select First Mline.
Select Second Mline.

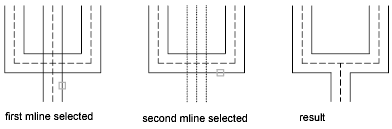

Closed Tee

Creates a closed-tee intersection between two multilines. The first multiline is trimmed or extended to its intersection with the second multiline.

Select First Mline.
Select Second Mline.

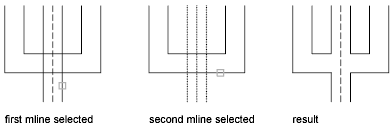

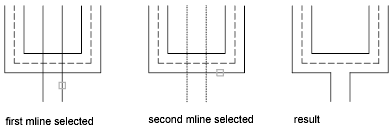

Open Tee

Creates an open-tee intersection between two multilines. The first multiline is trimmed or extended to its intersection with the second multiline.

Select First Mline.
Select Second Mline.

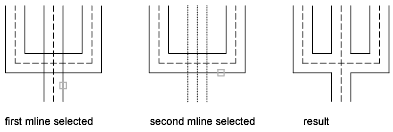

Merged Tee

Creates a merged-tee intersection between two multilines.The multiline is trimmed or extended to its intersection with the other multiline.

Select First Mline.
Select Second Mline.

Corner Joint

Creates a corner joint between multilines. The multilines are trimmed or extended to their intersection.

Select First Mline.
Select Second Mline.

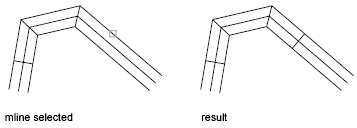

Add Vertex

Adds a vertex to a multiline.

Select Mline. Select the multiline at the point that you want to add the vertex.

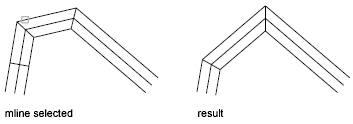

Delete Vertex

Deletes a vertex from a multiline.

Select Mline. The vertex nearest to the selected point is deleted.

Cut Single

Creates a visual break in a selected element of a multiline.

Select Mline. The selection point on the multiline is used as the first cut point.
Select Second Point. Specify the second cut point on the multiline.

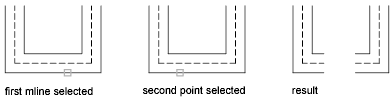

Cut All

Creates a visual break through the entire multiline.

Select Mline.
Select Second Point.

Weld All

Rejoins multiline segments that have been cut.

Select Mline. The selection point on the multiline is used as the start of the weld.
Select Second Point. Specify the end of the weld on the multiline.

Mline

Edits another multiline.

Undo

Reverses the previous action.
