FAQ: How can I see the latitude and longitude of the cursor?

When the COORDS system variable is set to 3, the status bar displays latitude and longitude.

1. Right-click the coordinate display located on the left end of the status bar ().
2. Select Geographic.
   NOTE:This option is available only if the drawing file contains geographical location data.

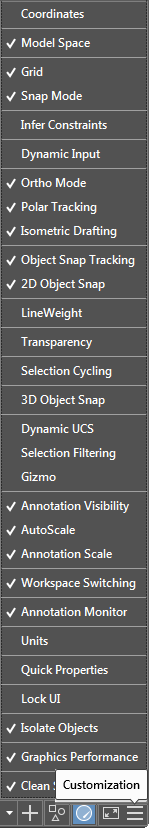

NOTE:Coordinate Display is not displayed on the status bar by default. To display coordinates on the status bar, select Coordinates from the status bar Customization button.
