PCEXTRACTEDGE (Command)

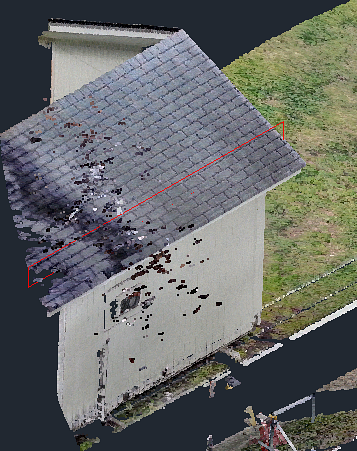

Infers the intersection between two adjacent planar segments, and creates a line along the edge.

Creates reference geometry from a point cloud.

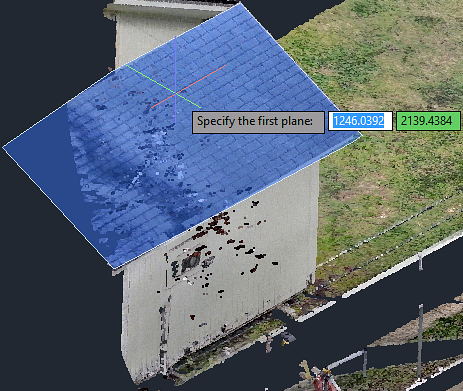

Specify the first plane: Select a planar segment.

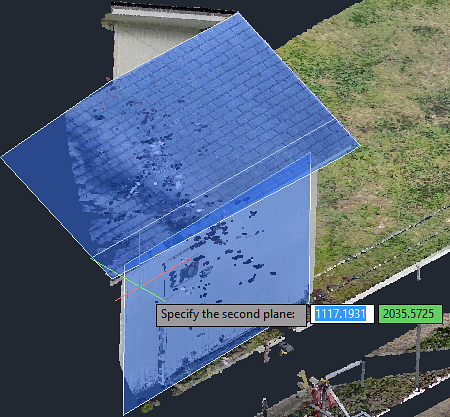

Specify the second Plane: Select a second planar segment adjacent to the first to infer the edge line.

The intersection of the two planar segments is inferred and a line is created that corresponds to the edge.
