Surface analysis tools check the continuity, curvature and draft angles of surfaces.
Use the surface analysis tools to validate surfaces and curves before manufacturing. Analysis tools include:

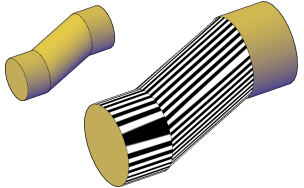

- Zebra Analysis. Analyzes surface continuity by projecting parallel lines onto the model.

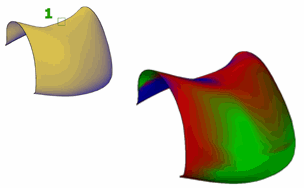

- Curvature Analysis. Evaluates areas of high and low surface curvature by displaying a color gradient.

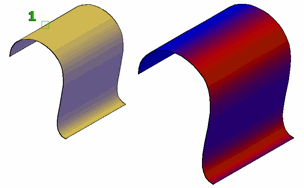

- Draft Analysis. Evaluates whether a model has adequate draft between a part and its mold.
NOTE: Analysis tools only work in the 3D visual styles; they do not work in 2D.
